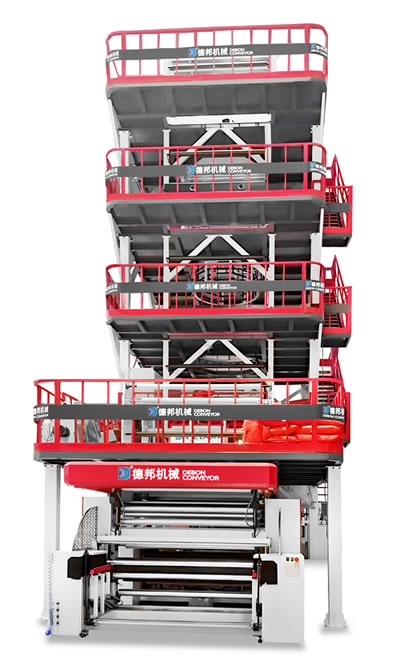

Model: DB-75x2、85x1、75x2/2200
Main Technical Parameters :
|
Model
|
DB2200
|
|
Suitable material
|
LDPE/LLDPE/MLDPE
|
|
Film width
|
1500-2000mm
|
Film thickness
|
0.02-0.15
|
Max.extrusion output
|
100-500kg/h
|
|
Extruder
|
|
Screw diameter
|
Ф75/75/85/75/75
|
Screw Vd length
|
32:1
|
Screw material
|
38CrMoAl + alloy
|
Cylinder material
|
38CrMoAL
|
Cylinder cooling
|
370wx 4
|
Driving motor
|
45kwx4/75kwx1
|
Temperature control
|
4/5
|
Average power-consume
|
260kw
|
Type of die
|
|
Die size
|
IBCФ500mn
|
Temperature control
|
6
|
Air ring
|
1
|
Air blower
|
Main fan 30kw,IBC In and out ventilation7.5kw×2
|
Take-upunit
|
|
Roller width
|
2200mm
|
Effective width
|
2000mm
|
Take-up speed
|
10-80m/min
|
Take-up motor
|
3kw
|
Winding unit
|
|
Fully automatic surface friction
|
SURFACE FRICTION TYPE FRICCIONDESUPERFICIE
|
Winding motor
|
3kw
|
Winding speed
|
10-80m/min
|
Overall dimension(Lx Wx H)
|
10500×9500x14500mm
|
